Solana Programs

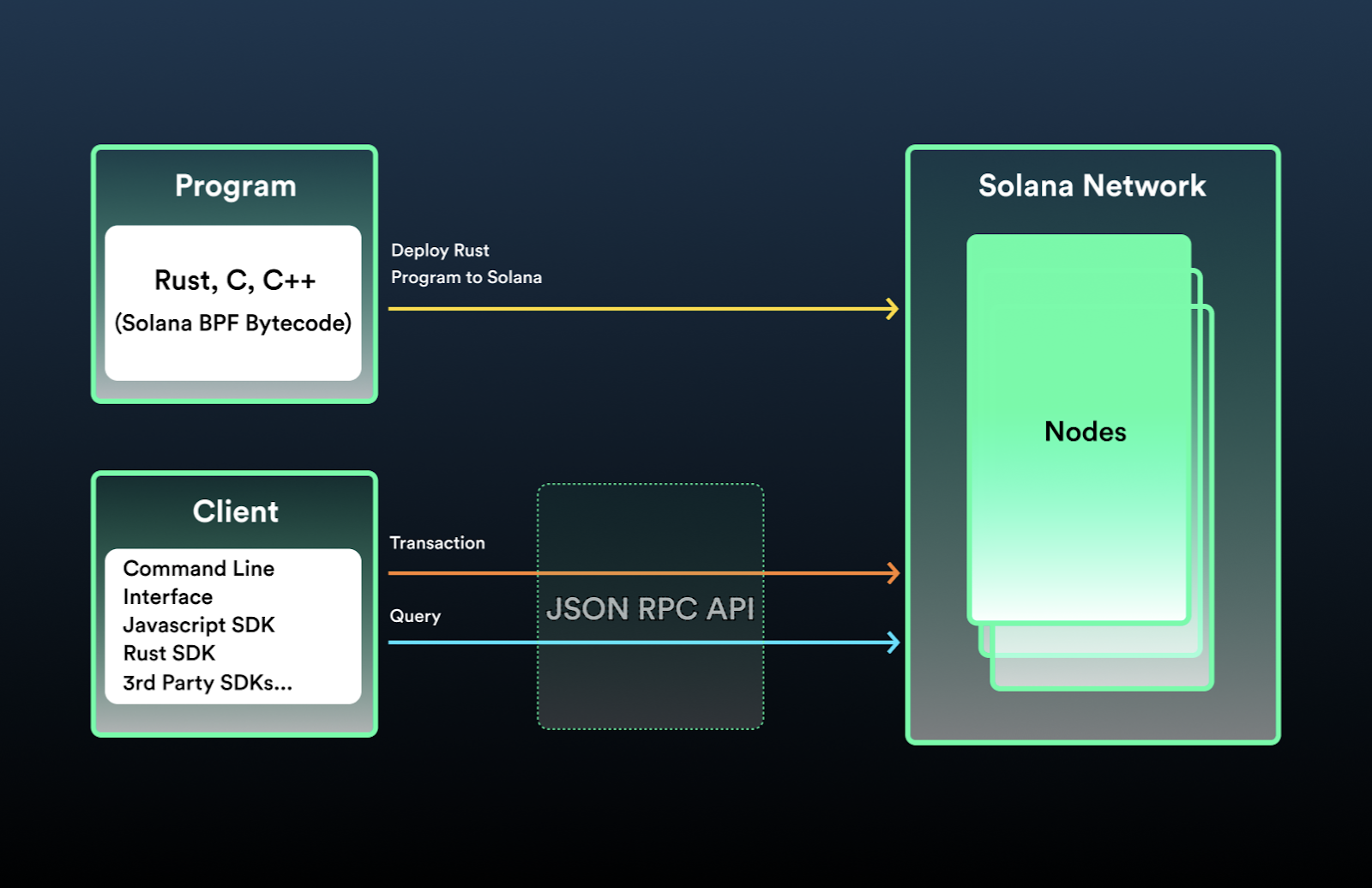

Solana Programs, often referred to as "smart contracts" on other blockchains, are the executable code that interprets the instructions sent inside of each transaction on the blockchain.

Solana programs are compiled via the LLVM compiler infrastructure to an Executable and Linkable Format (ELF) containing a variation of the Berkeley Packet Filter (BPF) bytecode. This LLVM compiler infrastructure allows for a program may be written in any programming language that can target the LLVM's BPF backend. Solana currently supports writing programs in Rust, C/C++ and a Python Transpiler.

Solana Development Setup

Install RUST

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh

Install Solana CLI and update your PATH environment variable to include the solana programs:

sh -c "$(curl -sSfL https://release.solana.com/stable/install)"

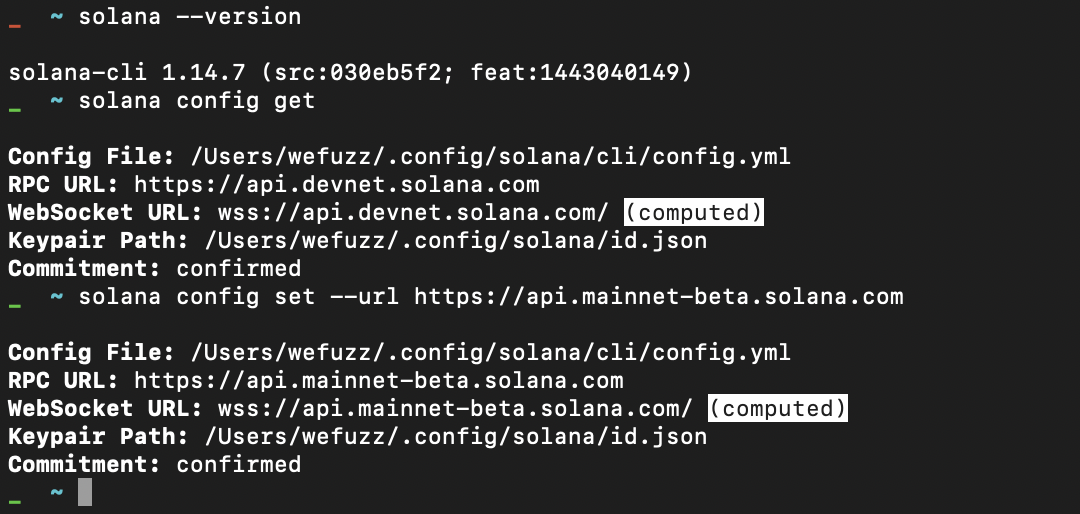

Using Solana CLI:

solana --help

It is possible to write contracts using solana-program and Anchor framework.

Anchor is a framework for Solana's Sealevel runtime providing several convenient developer tools for writing smart contracts.

Every Solana program has a set of instructions that are executed when a transaction is sent to the program.

solana-labs/solana/sdk/program/src/instruction.rs

/// A compact encoding of an instruction.
///
/// A `CompiledInstruction` is a component of a multi-instruction [`Message`],
/// which is the core of a Solana transaction. It is created during the
/// construction of `Message`. Most users will not interact with it directly.
///
/// [`Message`]: crate::message::Message
#[derive(Serialize, Deserialize, Debug, PartialEq, Eq, Clone, AbiExample)]
#[serde(rename_all = "camelCase")]
pub struct CompiledInstruction {
    /// Index into the transaction keys array indicating the program account that executes this instruction.
    pub program_id_index: u8,
    /// Ordered indices into the transaction keys array indicating which accounts to pass to the program.
    #[serde(with = "short_vec")]
    pub accounts: Vec<u8>,
    /// The program input data.
    #[serde(with = "short_vec")]
    pub data: Vec<u8>,
}

An instruction contains three main pieces of info:

• A program ID which references the location of the code we are be calling
• Set of accounts being used and whether each one is a signer and/or writable
• A buffer with some data in it, which functions as calldata.

Concepts

In Ethereum and other EVM-based platforms, the data and code of a smart contract are coupled together. This means that the data stored by a smart contract and the code that processes that data are all stored in the same contract.

Whereas, in Solana, the data and the code are decoupled. In Solana, the data of a smart contract is stored in a separate data contract, while the code that processes that data is stored in an executable contract. This separation of data and code allows transactions to be processed in parallel, rather than sequentially, which can improve the overall performance of the platform.

One potential downside of decoupling the data and code of smart contracts is that it can make it more difficult to understand the overall behavior of a contract. In EVM-based platforms like Ethereum, all of the relevant information (data and code) for a contract is contained in a single location, which can make it easier to understand how the contract works.

Refer to Getting Started with Solana Development for more information on how to develop Solana Smart Contracts.

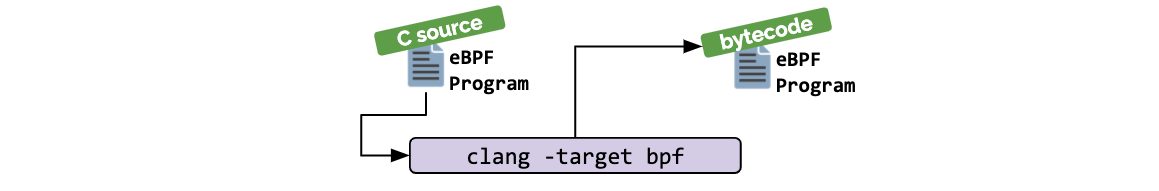

eBPF

eBPF is a revolutionary technology with origins in the Linux kernel that can run sandboxed programs in an operating system kernel.

• rbpf

Memory map

The virtual address memory map used by Solana BPF programs is fixed and laid out as follows:

• Program code starts at 0x100000000
• Stack data starts at 0x200000000
• Heap data starts at 0x300000000
• Program input parameters start at 0x400000000

Stack & Heap

Solana Programs use Stack and Heap memory for different purposes. BPF uses stack frames instead of a variable stack pointer. Each stack frame is 4KB in size. BPF stack frames occupy a virtual address range starting at 0x200000000.

If a program violates that stack frame size, the compiler will report the overrun as a warning The reason a warning is reported rather than an error is because some dependent crates may include functionality that violates the stack frame restrictions even if the program doesn't use that functionality. If the program violates the stack size at runtime, an AccessViolation error will be reported.

Programs have access to a runtime heap either directly in C or via the Rust alloc APIs. To facilitate fast allocations, a simple 32KB bump heap is utilized. The heap does not support free or realloc so use it wisely. Internally, programs have access to the 32KB memory region starting at virtual address 0x300000000 and may implement a custom heap based on the program's specific needs.

How is a Solana program deployed

Solana Programs are pretty much like any other account but with the exception of having the executable flag set to true and the owner being assigned to a BPF loader.

• Owner: The loader this program was deployed with.
• Program Id is the address that can be referenced in an instruction's program_id field when invoking a program.
• ProgramData Address is the account associated with the program account that holds the program's data (shared object).
• Authority is the program's upgrade authority.
• Last Deployed In Slot is the slot in which the program was last deployed.
• Data Length is the size of the space reserved for deployments. The actual space used by the currently deployed program may be less.

The native program responsible for program deployment, upgrade, and execution of the programs on the chain is BPFLoaderUpgradeab1e.

solana-labs/solana/sdk/program/src/bpf_loader_upgradeable.rs#L28

/// Upgradeable loader account states
#[derive(Debug, Serialize, Deserialize, PartialEq, Clone, Copy, AbiExample)]
pub enum UpgradeableLoaderState {
    /// Account is not initialized.
    Uninitialized,
    /// A Buffer account.
    Buffer {
        /// Authority address
        authority_address: Option<Pubkey>,
        // The raw program data follows this serialized structure in the
        // account's data.
    },
    /// An Program account.
    Program {
        /// Address of the ProgramData account.
        programdata_address: Pubkey,
    },
    // A ProgramData account.
    ProgramData {
        /// Slot that the program was last modified.
        slot: u64,
        /// Address of the Program's upgrade authority.
        upgrade_authority_address: Option<Pubkey>,
        // The raw program data follows this serialized structure in the
        // account's data.
    },
}

The BPF Upgradeable Loader marks itself as "owner" of the executable and program-data accounts it creates to store user's program. When a user invokes an instruction via a program_id, the Solana runtime will load both the user's program and its owner, the BPF Upgradeable Loader. The runtime then passes the user's program to the BPF Upgradeable Loader to process the instruction.

The command used to deploy a Solana Program:

solana program deploy <PROGRAM_FILEPATH>

This command invokes multiple function calls in the Solana Cli and a series of transactions:

1) read_and_verify_elf 2) if it's deploy do_process_program_write_and_deploy and if it's upgrade do_process_program_upgrade 3) finalize the deployment by setting the authority process_set_authority.

read_and_verify_elf is a simple program that reads the Solana Program file from given location on system and creates a loader, and verifies if it's a valid ELF file or not by calling Executable::<InvokeContext>::from_elf.

fn read_and_verify_elf(program_location: &str) -> Result<Vec<u8>, Box<dyn std::error::Error>> {
    let mut file = File::open(program_location)
        .map_err(|err| format!("Unable to open program file: {err}"))?;
    let mut program_data = Vec::new();
    file.read_to_end(&mut program_data)
        .map_err(|err| format!("Unable to read program file: {err}"))?;
    let mut transaction_context = TransactionContext::new(Vec::new(), Some(Rent::default()), 1, 1);
    let invoke_context = InvokeContext::new_mock(&mut transaction_context, &[]);

    // Verify the program
    let loader = create_loader(
        &invoke_context.feature_set,
        &ComputeBudget::default(),
        true,
        true,
        false,
    )
    .unwrap();
    let executable = Executable::<InvokeContext>::from_elf(&program_data, loader)
        .map_err(|err| format!("ELF error: {err}"))?;

    let _ = VerifiedExecutable::<RequisiteVerifier, InvokeContext>::from_executable(executable)
        .map_err(|err| format!("ELF error: {err}"))?;

    Ok(program_data)
}

do_process_program_write_and_deploy functions initializes a program account by calling

system_instruction::create_account(
    &config.signers[0].pubkey(),
    buffer_pubkey,
    minimum_balance,
    program_len as u64,
    loader_id,
)

and the ELF data is uploaded to the created account.

loader_instruction::write(buffer_pubkey, loader_id, offset, bytes)

Solana programs can be upgraded by default. That is, it is possible to redeploy a new ELF object (BPF bytecode) to the same Solana program account.

solana program deploy --upgrade-authority
